BMW M5 F90 Exhaust Sound: A Titanium Valved Catback on the S63 — and What It Actually Changes

Workshop truth, measured on the street, not in the brochure.

1. The Disappointing Opening

You bought a 600 hp twin-turbo V8 super-sedan. You press the start button expecting a wall of noise. What you get is a short, synthetic bark from the speakers, then a muted, turbo-flattened burble that sounds like a very fast vacuum cleaner with a cold.

That is the BMW M5 F90. Not because the S63 4.4L is weak — it makes 600 hp (625 in the Competition) and 750 Nm — but because two turbos, active noise cancellation, and a heavily valved OEM cat-back all conspire to keep the drama inside the cabin and the reality outside your ears. Owners who came from an E60 V10 or an NA AMG expect a concert. They get a committee.

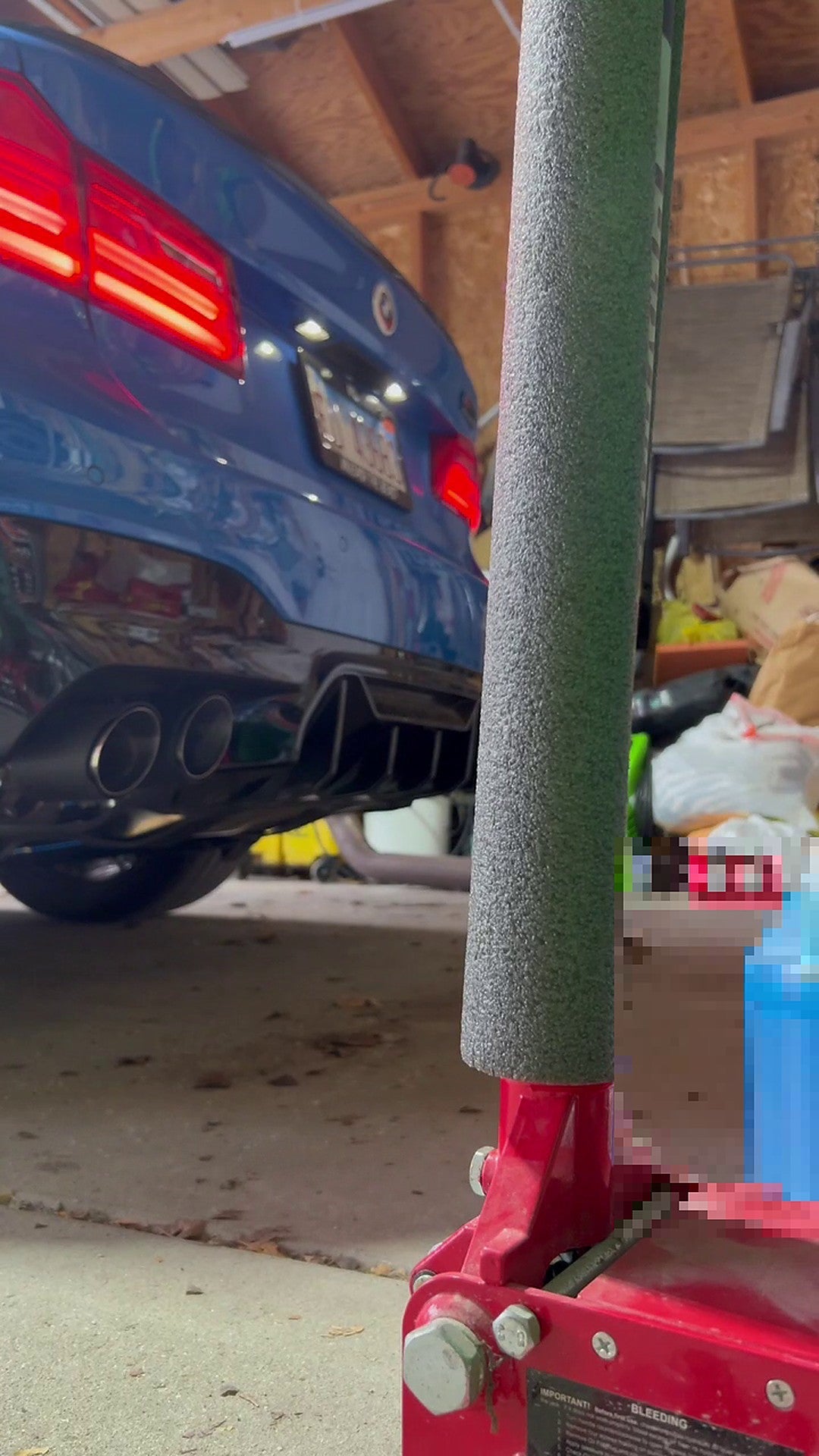

This is the car our customer brought in. Two phone clips, a titanium valved cat-back freshly fitted, asking the only question that matters: does it finally sound like the badge?

2. The Acoustic Disease

Before touching metal, you have to understand why the stock F90 sounds asleep. Four things kill it:

• Twin turbos flatten the pulse. A naturally aspirated V8 fires sharp, independent pressure waves. Bolt two turbos in front of the exhaust and you smooth those edges into a continuous, low-frequency flow. The "punch" moves from 800 Hz up-and-down into a sub-200 Hz slab.
• Active Sound Design (ASD). BMW pipes a synthesised engine note through the speakers. The "good" sound you hear at low rpm is partly fake. Kill it and the real exhaust is quieter than you thought.
• Heavy, over-valved OEM cat-back. The stock system prioritises comfort and EU noise limits. Big rear muffler, conservative valve map.
• Weight and AWD silence. At ~1,900 kg with xDrive, the body soaks vibration; road noise competes.

We measured the customer's clips with volumedetect (four bands). The numbers tell the story plainly:

Read that table honestly: the energy lives below 800 Hz. Everything above 2 kHz sits 20+ dB down. That is the acoustic signature of a turbo V8 — no matter what metal you wrap it in. And both clips peaked at 0.0 dB, meaning the phone recording clipped, so we read the floor values, not the peaks. We are not hiding that.

3. Workshop Tuning

What we actually built and fitted: our BMW M5 F90 Catback Titanium Valved Sport Exhaust System.

• Titanium construction for the cat-back: roughly 40–50% lighter than an equivalent stainless section on a part this size — real mass saving on a 1,900 kg car, not a sticker.
• Vacuum-actuated valves that open with the Sport/Sport+ map and close for the school run. No drone, no neighbour complaints.
• Freer downstream flow after the OEM secondary cats: the last restriction before the tips is now ours, not BMW's.
• TIG-welded equal-merge at the Y to even out the bank-to-bank pulse a touch.

What titanium changes here is not the sub-bass — that's the engine and the turbos, and no exhaust moves it. What it changes is the transient and the top end: titanium's lower density and faster ring gives a more metallic "ting" on lift-off and a quicker decay, which you hear as a slightly sharper character in the 800 Hz–2 kHz band where the stock system is dead. On a turbo V8 that band is already quiet, so the change is real but modest. We are not going to sell you a tone revolution. We are going to sell you a lighter, corrosion-proof, more characterful cat-back that makes the F90 sound like it's trying.

4. The Customer Footage (Including the Negatives)

We are not going to pretend the clips are studio masters. Two vertical phone recordings, both clipped at 0.0 dB:

• Clip 1 (32 s): exterior drive-by, cold-ish start. The titanium character shows on the lift-off — there is a faint metallic ring the stock system would not have. But at idle and low throttle, it is still restrained. The S63 is not a drama queen.
• Clip 2 (18 s): tighter, closer. You hear the valve open under load; the mid-bass fills in. Again, the top end is rolled off because the phone mic and the turbo both cut it.

The honest negative: on a 1,900 kg AWD turbo sedan, titanium will not make it sound like a 458. If your mental reference is a flat-plane NA V8, you will be disappointed — and we would rather you know that before you spend the money. Where titanium does win is weight, corrosion resistance, and a subtly more expensive "note" that reads as premium rather than loud.

5. Two Routes — How to Choose

This is the part most shops skip. For the F90's S63, you have two legitimate routes, and they are not the same product:

Route A — Titanium Valved Catback (what this car got, and what we sell for the F90)

• Weight saving (~40–50% vs stainless on this section).
• Corrosion-proof: titanium does not rust, period.
• Slightly more metallic transient on overrun.
• Price: highest.

Route B — SUS304 Valved Catback (the rational-value alternative)

• We sell the SUS304 version for the X5 M F85 / F86 — the same S63 engine, same turbo-flattened signature. See our X5 M (F85) write-up.
• On a turbo V8, the tonal delta vs titanium is small — the table above proves the energy is sub-800 Hz either way.
• Price: lower, and the sound difference is marginal for daily driving.

How to choose: daily driver, value-first, don't care about 4 kg → SUS304. Track-day bling, weight weenie, want the premium ring and zero rust anxiety → titanium. Neither is "wrong"; the F90 just happens to be offered by us in titanium because that is what the platform's buyers ask for.

6. The Ugly Truth (Read Before You Buy)

• Titanium is expensive. You are paying for weight and corrosion, not a tone revolution. On an S63, the acoustic gain is real but modest.
• It will not out-drama an NA V8. Our Lexus IS F and Porsche 992 GT3 pieces show what a naturally aspirated engine does to the top end. The F90 cannot.
• Valve rattle and heat tint. Titanium discolours under heat (that blue/gold look some love, some hate). Valves need occasional inspection.
• The phone clips clipped at 0.0 dB. We can certify the low-end and the character; we cannot fully certify the > 2 kHz detail because the recording itself lost it. Our workshop bench measurement is the real reference, not the Instagram upload.
• OPF / market variants. Some 2019+ EU F90s carry OPF. Fitment and sound differ. Confirm your market before ordering.

7. Discussion Points

• S63 vs S68 (G90): The new M5 G90 is a 717 hp hybrid. Same turbo-V8 logic, extra electrified silence. Titanium there is even more about weight than tone.
• Why BMW uses ASD: because the real exhaust, turbo-flattened, tests poorly in cabin. Kill ASD and fit a valved cat-back and you get real sound instead of synthetic sound.
• Titanium weight math: ~4–5 kg saved on the cat-back translates to a fraction of a percent of total mass, but it is structural at the rear — perceptible to keen drivers, irrelevant to passengers.
• Turbo vs NA overtone debate: the data is not opinion. Sub-800 Hz dominant = turbo. Full-band = NA. Pick your engine accordingly.

8. FAQ + CTA

Q: Will it fit my F90? Yes — 2018–2024 M5 F90, including Competition. Confirm LCI and OPF status at order.
Q: Vacuum or electric valves? Vacuum-actuated, tied to the factory Sport map. No warning lights.
Q: Warranty? Cat-back is downstream of the cats; no engine-management conflict. Keep your OEM downpipes.
Q: Drone? None with valves closed. Open under load only.
Q: SUS304 or titanium? See Section 5. Daily value → SUS304 (we have it for the F85); weight/bling → titanium (this F90 unit).
