Two clips of a white F10 523i. The first is fifty-four seconds of a workshop: the car sitting on a blue two-post lift with its boot open, cardboard boxes stacked in the trunk well, tools spread on a sheet of cardboard underneath, and a technician in a red shirt working at the right rear wheel. The engine runs for the entire clip. The second is eight seconds of a Japanese country road filmed from the edge of a vegetable field, and the car passes through frame for about two of them.
Here is the honest summary of what a 523i sounds like with a valved catback fitted: you have to ask for the noise. At idle it is a large German saloon doing its job. Blip the throttle on the lift and something with actual character answers — mid-range, dry, unbothered by the low-frequency boom that ruins most aftermarket sedans. Then it settles back into being a 5-series. That is not a defect. That is the car.
The disappointment this build solves is not loudness. The 523i is the base 5-series, the one with the smallest engine in the range and the one nobody looks at in a car park — and for a while it was the last of its kind. Under the bonnet sits the N52, a 2.5-litre naturally aspirated inline-six, and it was the final naturally aspirated six BMW put into a volume production car before turbocharging took over the entire range. This car is not slow because it is broken. It is quiet because that is what it was designed to be.
What the N52 is, and why BMW engineered the quiet out of it
The F10 523i runs the N52B25: 2,497 cc, inline-six, naturally aspirated, 150 kW (204 hp) at 6,300 rpm and 250 Nm at 2,750 rpm, on an 82×78.8 mm bore and stroke with an 11:1 compression ratio. Port injection, Double-VANOS, Valvetronic, a magnesium-aluminium alloy block, and BMW's DISA variable-length intake manifold. Kerb weight around 1,725 kg, rear drive, eight-speed automatic. It shares its fundamental layout with the straight-six in the 540i — same generation, same family philosophy, one engine breathing on its own and one with a turbo hanging off it.
That last difference matters more than the horsepower suggests. A turbocharged inline-six has its exhaust pulses flattened by the turbine before they ever reach the catback; the sound you hear downstream is already smoothed. A naturally aspirated six sends cleaner, more regular pulses down the pipe — but the N52's pulses are soft, because it is a small-per-cylinder engine with modest revs and a comfort-first calibration. Peak power arrives at 6,300 rpm and the redline is not far above it. This is not an engine that spins to make noise.
BMW then wrapped it in the quietest F10 they could build. Layered underbody shielding, a dual-shell boot floor, laminated glass where the option list allowed it, and an exhaust system sized for a 204 hp engine's thermal and backpressure needs, not for theatre. The 540i's sound-design problem — part of the engine note arriving artificially through the speakers — is the same F10 philosophy applied to a bigger engine. On the 523i the whole thing is just… polite. Which is exactly the problem.
What the clips actually show

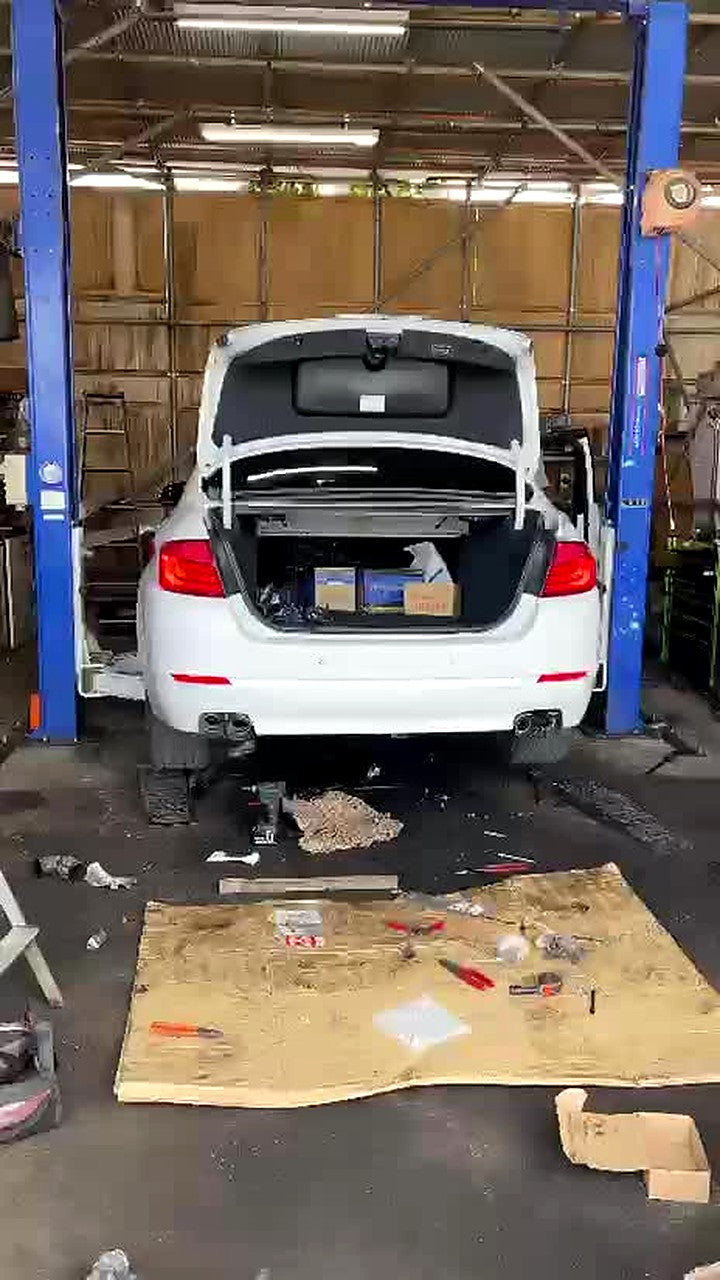

Clip one is the install. White paint, blue lift posts, a wooden workshop wall, and a red-shirted technician working out of frame at the right rear wheel for most of the clip. The boot is open with boxes still in it — this car came in for a catback and nothing else, and the footage is a phone propped up at the back of the bay rather than a shot list. Watch the rear bumper: two outlets per side, four dark carbon-finished tips in total, sitting in the bumper's lower valance. That is the catback's calling card — a dual-muffler system with twin tips per side, in polished 304 stainless. The engine note runs continuously underneath, and the technician revs it at intervals; the loudest of those revs lands about two seconds into the published clip, and the audio recorder runs out of headroom trying to capture it.
Clip two is the drive-by, and it is barely a car video. A field of vegetables in the foreground, a red roadside billboard, power lines, a pink bus going the other way — and the 523i crossing the frame on the road for about two seconds. We are publishing it anyway, because the audio is the whole point. Listen to the shape of it: quiet as the car approaches from the left, loudest as it passes the camera, then falling away as it disappears down the road. That rising-then-falling envelope is the drive-by signature, and it is the only moment in either clip where the engine is actually under load.
The honest limits, stated once so we do not have to keep repeating them: both clips are single phone microphones. The audio in clip one is clipped — the measured peak is 0.0 dB, so read every peak in this article as "at least this loud" rather than an exact value. There is no A/B against the stock exhaust in the same conditions, no full-throttle pull from a standstill, and no daylight footage, which means nobody should judge welds or finish from what is published here.
The measurement, and what it says about stainless on the N52
We ran both files through spectral analysis, band by band. Clip one: overall mean -17.4 dB against a clipped 0.0 dB peak. Below 100 Hz the mean sits at -24.7 dB. The 100–800 Hz band is the dominant one at -18.9 dB mean. Above 2 kHz the mean falls to -33.5 dB — but the peak above 2 kHz only falls to -1.0 dB.
That is a 32.5 dB gap between mean and peak in the top band. A steady tone shows a hot mean and a tamed peak; this file shows the opposite — quiet almost everywhere, with something sharp cutting through in short bursts. Those bursts are combustion transient and valve machinery, the high-frequency edges of a running engine, and they survive because the exhaust is open and the microphone is close. But note how modest the gap is. In our M3 G80 measurement the same gap ran to nearly 37 dB on a titanium system behind a turbocharged six with far more exhaust energy. Thirty-two dB on a 204 hp naturally aspirated six is exactly what physics predicts: there is simply less energy in these pulses to begin with.
Clip two tells the same story from further away. Overall mean -20.4 dB, sub-100 Hz at -27.4 dB, mid band dominant at -22.2 dB, top band at -36.7 dB mean with a -7.0 dB peak. The low end sits more than 5 dB under the mid in both files — this system does not boom, and on a 1.7-tonne saloon with a comfort suspension that is the correct engineering answer. What the drive-by adds that the lift cannot is load: the engine is actually working, the note is sustained rather than intermittent, and the mid-range character carries all the way through the pass.
This is the evidence point for the material choice below. The N52's voice lives in the mid band — measured, not asserted. Stainless steel is the material that adds body to that band. Titanium is the material that takes body out of it.
Two ways to build a 523i exhaust, and why this owner stayed in stainless
We sell both materials for this car, so here is the argument against ourselves, the same way we run it in the shop.
The stainless route — what this customer bought. Our 523i F10 valved catback is built from 304 stainless: dual mufflers, twin outlets per side with carbon-finished tips, TIG-welded, valves integrated so the factory controller still works. Steel is dense, and density is damping. On an engine whose character is mid-range — and we measured that — damping in the mid-range is not a compromise, it is the tuning. The steel system deepens exactly the band the N52 lives in and leaves the rest alone. It also costs roughly half of what the titanium version would, and it shrugs off a British or Japanese winter without a second thought.
The titanium route — legitimate, but not here. Titanium is thinner-walled and lighter, which means less damping and more high-frequency content. That is a genuine advantage on an engine that spins hard enough to fill the top of the spectrum with content worth hearing — the argument we made at length for the 718 GT4 RS, a naturally aspirated six pulling to 9,000 rpm where titanium's thin walls preserve harmonics that steel would absorb. The N52 does not operate in that region. Its 6,300 rpm power peak and soft, low-energy pulses mean titanium on this car does not add sparkle; it subtracts body. The note gets thinner, reedier, and more strained under load — the opposite of what a comfort saloon wants.
And the practical case is just as one-sided. A titanium catback saves something like 4–6 kg. On a 1,725 kg car that is nothing you will feel through the steering wheel or the fuel bill. The aesthetic case — heat tint, burnt-blue tips — is real, and some owners will want it, and we will build it. But the honest shop answer for a 204 hp naturally aspirated six in a 1.7-tonne saloon is the material that costs less, weighs more, and adds body to the band the engine actually uses. That is why our default for the F10 523i is stainless, and it is why this owner's choice needs no defending.
The same stainless-versus-titanium conversation, on engines with more exhaust energy to work with, is the one we had with the 330i G20. If you are weighing materials for a different BMW, that piece walks through the reasoning.
The honest warnings
204 hp is 204 hp. No catback turns an N52 into an S55. What this system does is give the engine a voice and let you choose when to use it. If you are buying this expecting M-car theatre, you will be disappointed, and you should probably be shopping a different car rather than a different exhaust.
The audio is clipped. Peak 0.0 dB in clip one means the phone recorder ran out of headroom on the loudest rev. The spectral shapes and the means are valid; the peaks are floors. Anyone who quotes you an exact peak from this footage is over-reading it.
One drive-by is not a review. Clip two is a single passing event at unknown road speed, from one microphone position, in one direction. It proves the system makes a proper note under load. It does not tell you how the car sounds at a steady 4,000 rpm, and neither do we pretend otherwise.
Check your valve's default state before you judge the sound. A valved catback that starts closed sounds, at idle, close to stock — that is the design working as intended, not the exhaust underperforming. Make sure you have heard it with the valves open before you form an opinion. Half the "it sounds the same" complaints we field are cars that have never had the valves open.
Stainless is not maintenance-free. It is corrosion-resistant, not corrosion-immune. On a car that sees winter salt, rinse the underbody when you can and keep an eye on the clamp joints after the first season. This is a five-minute conversation, not a scary one.
A question for the owners
The N52 was the last of BMW's naturally aspirated production sixes. The turbo fours that replaced it are faster and cleaner and they sound like appliances by comparison. If you still own a 523i — or any N52 car — is it still your daily, and what did you do about its voice? And the material question we keep circling: on a small, soft, naturally aspirated six, would you even consider titanium, or is stainless the only honest answer? The answers decide what we lead with on the next N52 order.
Questions we get asked about the 523i exhaust
Stainless or titanium for the N52? Stainless, and it is not close for this engine. The N52's character is mid-range — we measured it at -18.9 dB mean against a -24.7 dB low band — and steel adds body to exactly that region. Titanium would thin it. The only reason to specify titanium on this car is the look, and we will say so plainly.
Will the factory valve control still work? Yes. The valved catback integrates with the car's existing valve controller, so Comfort stays civilised and Sport opens everything. Both materials keep that behaviour.
How loud is this setup? In the published clips: -17.4 dB mean in the workshop with a clipped peak, and -20.4 dB mean on the drive-by, mid-band dominant in both. Those are character numbers from a phone microphone, not a loudness rating. Under load with the valves open it is a proper saloon exhaust — present, never anti-social.
Is a catback-only upgrade enough? For this car, yes. The N52 responds to the back box more than it would to a downpipe, because there is no turbine buffering the pulses and no emissions filter mid-pipe strangling them on most pre-GPF cars. A catback is the highest-value single change you can make to a 523i's voice.
HMD builds the BMW 523i F10 valved catback in 304 stainless, with titanium available on request. The full BMW range — including the F10 535i and 550i systems — lives in the For BMW collection, and the wider material and fitment options are in the catback line. Send us your model year, drivetrain, and whether your roads get salted.
